Precision, Not Guesswork

How we measure

Foresight Sports launch monitors use a combination of infrared object tracking and high-speed, high-resolution camera-based technology to precisely measure every aspect of club head and ball launch performance. By capturing thousands of images per second, building a virtual 3D model, and then analyzing a multitude of data components, our technology is able to create the most accurate and complete picture of your ball and club head performance – and deliver the results in nearly real-time.

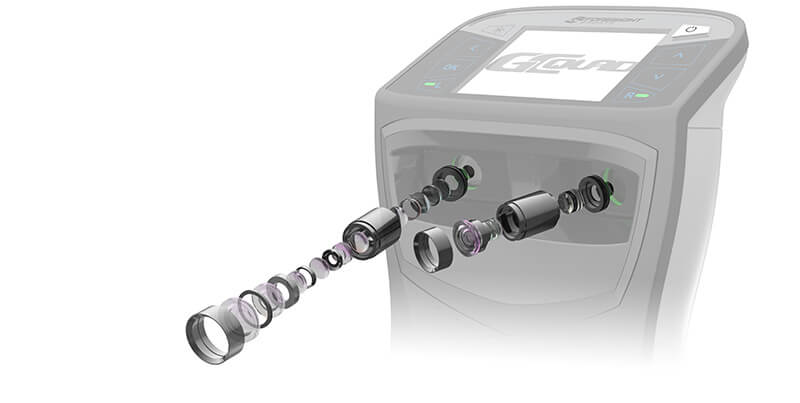

lens of GCQuad

How We're Different

Unlike radar-based technologies that analyze ball and club head performance results from the worst possible position (behind the club head) and then largely calculate performance based on the geometric center of the club head, Foresight Sports launch monitors use exact photometric measurements taken with a clear, direct view of the impact window.

Our launch monitors measure – not calculate – club head data based on the club’s face plane, deriving vastly more precise results.

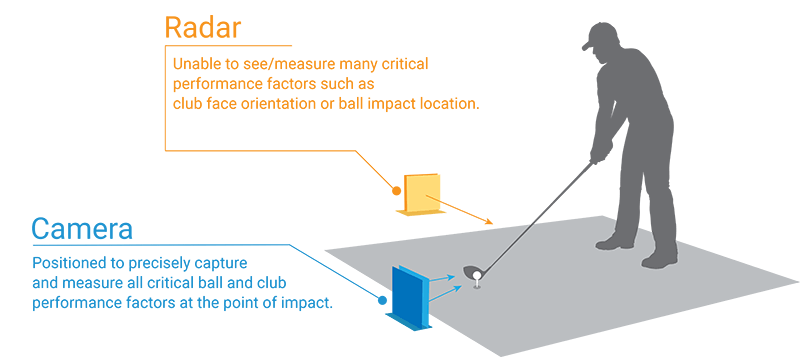

Radar and Camera for Golf Swing Measurements

Ball launch data is measured by capturing images of the ball to model it in real time, and comparing it to the next captured image to determine exactly what the ball is doing post-impact.

Here are the key club and ball performance metrics our GC launch monitors measure.

Ball Launch Data

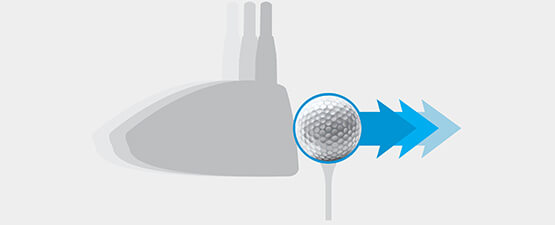

Ball Speed

The measurement of the golf ball’s velocity just after impact. Ball speed is the main component in generating distance.

ball speed

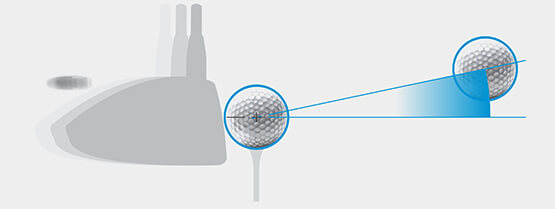

Launch Angle of Golf Ball

Launch Angle

The initial vertical angle of ascent relative to the ground plane measured in degrees. The launch angle, combined with ball spin and speed, will determine the ball’s carry and total distance.

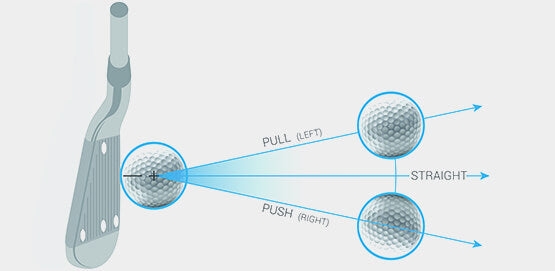

Azimuth

The initial horizontal angle relative to the target line. The azimuth, combined with side spin, will determine the final ball position range relative to the target line.

azimuth golf data
Total Spin of Golf Ball

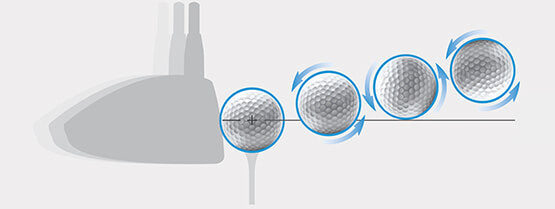

Total Spin

The amount of total spin created around the tilt axis is expressed as total spin. This will determine the curve and lift of the shot.

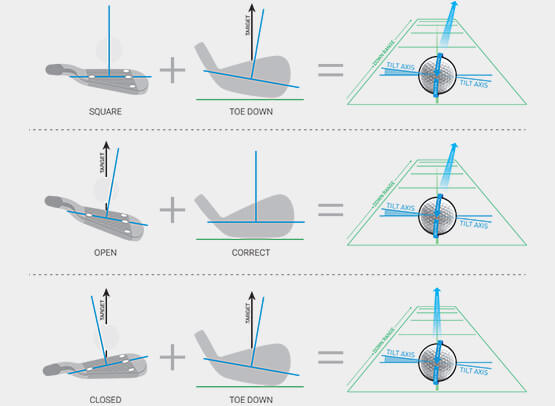

Spin-Tilt Axis

One of the most important pieces of data measured by our launch monitors is the spin-tilt axis. The spin-tilt axis is the axis that the golf ball rotates around to create shot curvature and lift.

Golf Spin Tilt Axis Measurement

Club Data

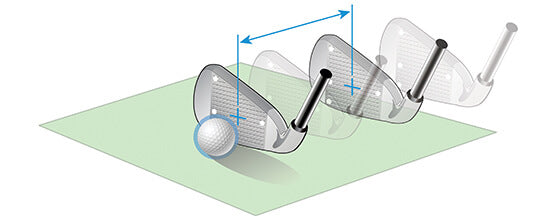

Club Speed

The velocity at which the head travels, measured just prior to ball contact.

club speed measurement

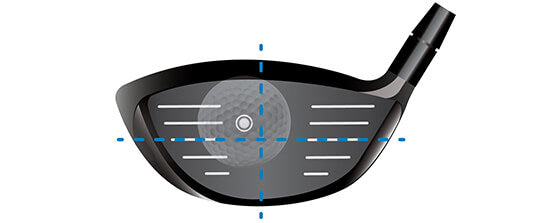

Impact Point of Golf Club

Impact Point

The measurement of the contact point of the golf ball on the club face relative to face center.

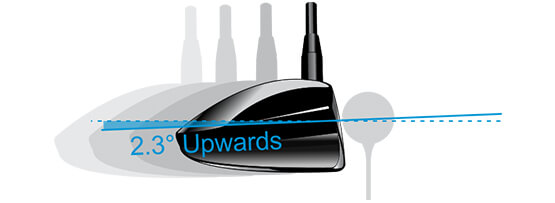

Angle of Attack

The descending or ascending path of the club head, measured in degrees.

angle of attack

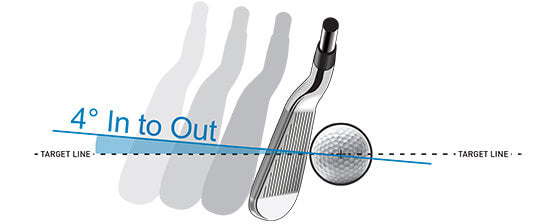

Golf Club Path Measurement

Club Path

The swing path measured in a horizontal plane relative to the target line. This data point will tell you if the club was moving from inside-out, outside-in, or perfectly down the line.

Spin-Tilt Axis

One of the most important pieces of data measured by our launch monitors is the spin-tilt axis. The spin-tilt axis is the axis that the golf ball rotates around to create shot curvature and lift.

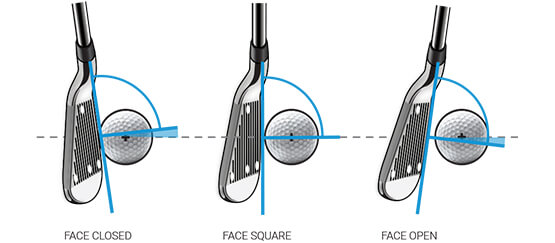

Angle of Club Face

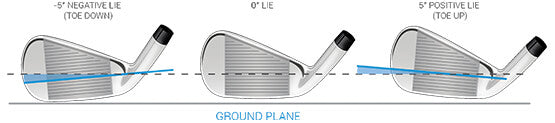

delivered lie angle

Delivered Lie Angle

The lie of the club is the way the club compares to the ground through the hitting area. This is a dynamic measurement, and it is relative to the ground plane. A negative number means the club is “toe down” at impact, while a positive number means the club is “toe up.”

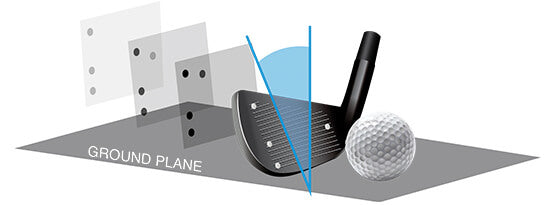

Impact Loft

The dynamic measurement in degrees of the club head’s face plane position vertically relative to the ground plane.

loft at impact of golf club
closure rate

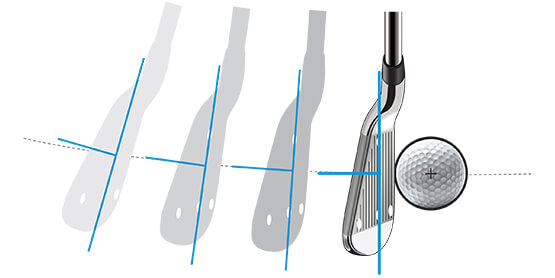

Closure Rate

The rotation of the club head heel to toe measured about the shaft in degrees per second or rpm.

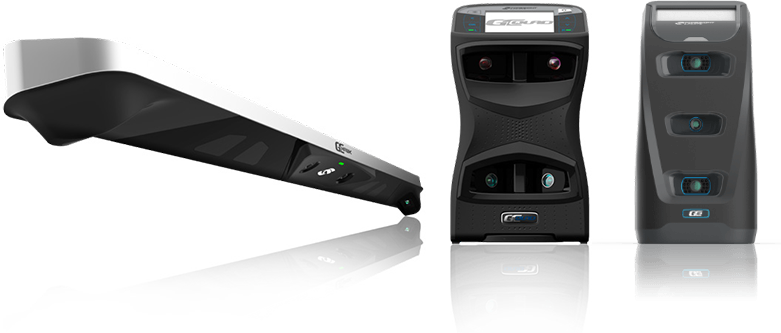

Foresight Sports Launch Monitors

Choosing the Right Technology

There are many different technologies on the market, but our GC launch monitors provide the highest level of accuracy and precision, indoors and out.

Contact Foresight Sports today to learn more.

Compare Models

GCQuad

GCQuad

Buy Now
QuadMAX

QuadMAX

Buy Now
GC3

GC3

Buy Now
Foresight Falcon

Foresight Falcon

Buy Now
GCHawk

GCHawk

Buy Now
Features
Indoor/Outdoor
Cameras 4 (Quadrascopic) 4 (Quadrascopic) 3 (Triscopic) 4 (Quadrascopic) 4 (Quadrascopic)
Hitting Zone 18" x 14" 18" x 14" 7” x 10” 59" x 28" 52" x 30"
Touchscreen
N/A​ N/A​
MyTiles (Screen Customization)
N/A​ N/A​
Essential Putting Analysis
optional
optional
Power Supply Field Swappable Battery Field Swappable Battery​ Internal Battery​ Internal​ External​
Battery Capacity 6-8 Hours​ 7-9 Hours 5-7 Hours​ N/A N/A
Speed Training
Barometric Sensor
WiFi
Bluetooth
Ethernet
USB Type C C C C C
Ball Data
Launch Angle
Side Angle
Ball Speed
Total Spin
Carry
Side Spin/Spin Axis
Ball Apex
on Device
Ball Descent Angle
on Device
Ball Offline
on Device
Club Data
Club Head Speed
Smash Factor
Club Path
Angle of Attack
Loft/Lie
Face Angle
Impact Location
Closure Rate
 Outdoor capable if fully covered.
